Running asterism selections

This page explains how to run guide-star asterism selections with TipTop.

Two selection functions are available, depending on the AO configurations:

Use case	Function	Parameter block	Returns
LGS-assisted systems with NGS low-order correction	`asterismSelection`	`[ASTERISM_SELECTION]`	`sr, fwhm, ee, covs, simul`
NGS-only high-order correction	`hoAsterismSelection`	`[HO_ASTERISM_SELECTION]`	`sr, fwhm, ee, simul`

Use asterismSelection for systems where the high-order correction is driven by LGSs and the NGS asterism is used for low-order correction.
Use hoAsterismSelection for systems where the high-order correction itself is performed on a Natural Guide Star, for example ERIS in NGS mode.

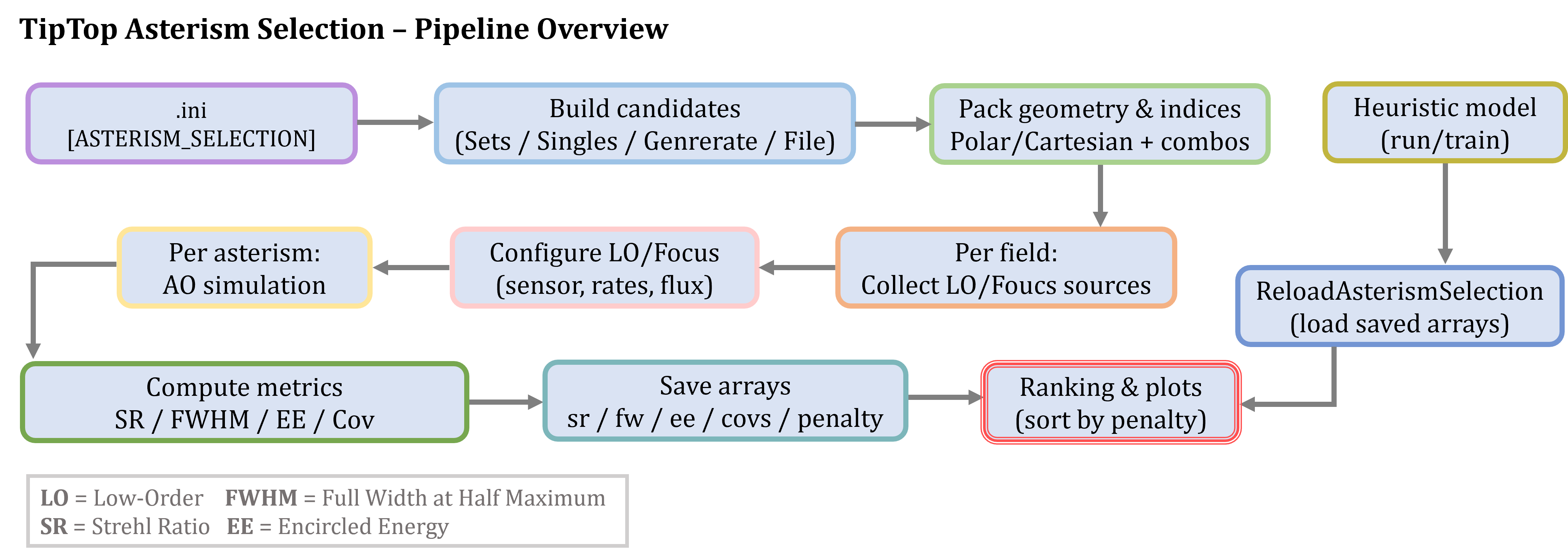

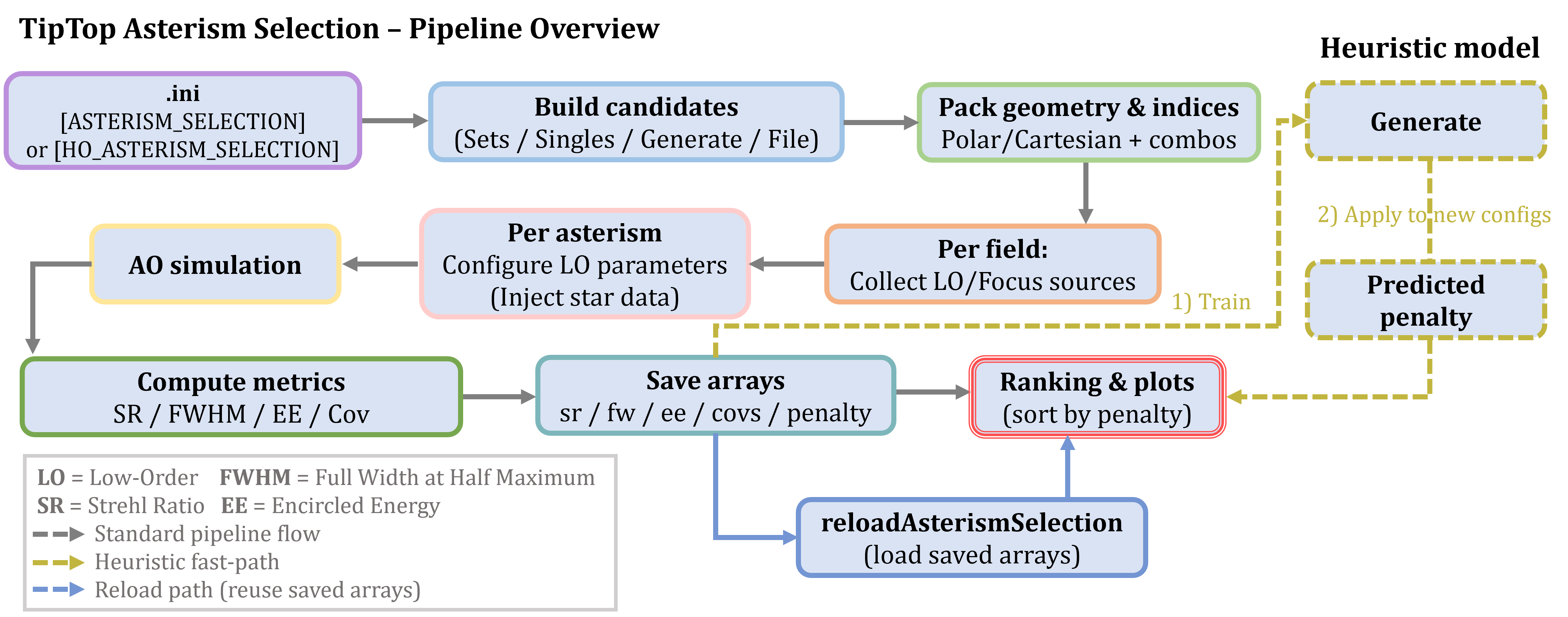

📑 Pipeline

📈 LGS-assisted selection: `asterismSelection`

Use asterismSelection when the .ini file contains an [ASTERISM_SELECTION] section and the low-order loop is enabled through a valid [sensor_LO] section.

sr, fw, ee, covs, simul = tiptop.asterismSelection(simulName, path2param, parametersFile, outputDir, outputFile, doPlot=False,
                         returnRes=False, returnMetrics=True, addSrAndFwhm=True, verbose=False,
                         getHoErrorBreakDown=False, ensquaredEnergy=False, eeRadiusInMas=50,
                         doConvolve=False, plotInComputeAsterisms=False, progressStatus=False, gpuIndex=0):

Parameters

Parameter	Type	Required	Description
`simulName`	str	✓	Short name used as prefix when saving arrays (e.g. `simulName+'sr.npy'`).
`path2param`	str	✓	Path to the parameter file.
`parametersFile`	str	✓	Name of the parameter file to be used without the extention.
`outputDir`	str	✓	Path to the folder in which to write the output.
`outputFile`	str	✓	Base FITS filename if results are saved as images elsewhere in the pipeline.
`doPlot`	bool	optional	Default: `False`, If you want to see the result in python set this to `True`.
`returnRes`	bool	optional	Default: `False`, If `True`, return (HO, LO) residuals per asterism and the simulation object.
`returnMetrics`	bool	optional	Default: `True`, The function will return Strehl Ratio, fwhm, encircled energy within eeRadiusInMas, covariance ellipses and the simulation object, if set to `True`.
`addSrAndFwhm`	bool	optional	Default: `True`, The function will add in the header of the fits file SR anf FWHM for each PSF.
`verbose`	bool	optional	Default: `False`, If you want all messages set this to `True`.
`getHoErrorBreakDown`	bool	optional	Default: `False`, If you want HO error breakdown set this to `True`.
`ensquaredEnergy`	bool	optional	Default: `False`, If you want ensquared energy instead of encircled energy set this to `True`.
`eeRadiusInMas`	float	optional	Default: 50, Used together with `returnMetrics`, radius used for the computation of the encircled energy.
`doConvolve`	bool	optional	Default: `False`, If you want to use the natural convolution operation set to True.
`plotInComputeAsterisms`	bool	optional	Default: `False`, If you want to display asterisms.
`progressStatus`	bool	optional	Default: `False`, If you want to display progress status.
`gpuIndex`	integer	optional	Default: 0, Target GPU index where the simulation will be run.

Prerequisites

Your configuration file must contain:

a valid [ASTERISM_SELECTION] section;
a valid [sensor_LO] section;
the corresponding low-order loop parameters in [RTC].

When returnMetrics=True, the function returns:

sr: Strehl ratio per asterism.
fw: FWHM per asterism, in milliarcseconds.
ee: encircled or ensquared energy per asterism.
covs: covariance ellipse parameters per asterism and science target.
simul: the asterismSimulation object containing inputs, indices, cached arrays, and additional internal results.

Metrics are computed per science target. If several science directions are defined, each asterism contains one value per target, for example:

sr[asterism_idx][target_idx]
fw[asterism_idx][target_idx]
ee[asterism_idx][target_idx]

For a single science target, the first value is usually accessed as:

sr_val = sr[idx][0]
fw_val = fw[idx][0]
ee_val = ee[idx][0]

Files written to `outputDir`

The following files are saved with the prefix simulName:

File	Contains	Notes
`simulName + 'sr.npy'`	Strehl ratio	per asterism and science target
`simulName + 'fw.npy'`	FWHM	in mas
`simulName + 'ee.npy'`	Encircled or ensquared energy	within `eeRadiusInMas`
`simulName + 'covs.npy'`	Covariance ellipses	used for jitter / anisotropy diagnostics
`simulName + 'penalty.npy'`	Scalar ranking metric	lower is better

Results are saved in the order in which asterisms are evaluated. They are not automatically sorted.

Reloading previous results

Previously computed selections can be reloaded without recomputation:

sr, fw, ee, covs, simul = tiptop.reloadAsterismSelection(simulName=SIMUL_NAME, path2param=PARAMS_DIR, parametersFile=INI_BASENAME, outputDir=OUTPUT_DIR, outputFile='psf',
                                                        doPlot=False, returnRes=False, returnMetrics=True, addSrAndFwhm=True,
                                                        verbose=False, getHoErrorBreakDown=False, ensquaredEnergy=False,
                                                        eeRadiusInMas=50, gpuIndex=GPU_INDEX)

For a step-by-step run, see Tutorial - Asterism Selection.\ A complete worked example is also available here: ➡️ TIPTOP-AST-EXAMPLE-MAVIS.ipynb

📈 NGS-only HO selection: `hoAsterismSelection`

hoAsterismSelection is the NGS-only counterpart of asterismSelection.

It evaluates candidate high-order guide stars for configurations where the HO loop itself runs on a Natural Guide Star. This is useful, for example, for ERIS in NGS mode.

Compared to asterismSelection, this function:

does not require a [sensor_LO] section;
does not return covariance ellipses;
uses a [HO_ASTERISM_SELECTION] section instead of [ASTERISM_SELECTION];
saves files with a _ho_ prefix.

sr, fw, ee, simul = tiptop.hoAsterismSelection(simulName, path2param, parametersFile, outputDir, outputFile,
                                              doPlot=False, returnRes=False, returnMetrics=True, addSrAndFwhm=True,
                                              verbose=False, getHoErrorBreakDown=False, ensquaredEnergy=False,
                                              eeRadiusInMas=50, progressStatus=False, gpuIndex=0)

Parameters

Parameter	Type	Required	Description
`simulName`	str	✓	Short name used as prefix when saving output arrays (e.g. `simulName+'_ho_sr.npy'`).
`path2param`	str	✓	Path to the folder containing the parameter file.
`parametersFile`	str	✓	Name of the parameter file without the extension.
`outputDir`	str	✓	Path to the folder in which to write the output.
`outputFile`	str	✓	Base name for output files.
`doPlot`	bool	optional	Default: `False`. If `True`, displays per-metric bar plots after the run.
`returnRes`	bool	optional	Default: `False`. If `True`, returns HO residuals per configuration instead of metrics.
`returnMetrics`	bool	optional	Default: `True`. Returns SR, FWHM, EE, and the simulation object.
`addSrAndFwhm`	bool	optional	Default: `True`. Adds SR and FWHM to the FITS header.
`verbose`	bool	optional	Default: `False`. If `True`, prints all messages.
`getHoErrorBreakDown`	bool	optional	Default: `False`. If `True`, computes HO error breakdown.
`ensquaredEnergy`	bool	optional	Default: `False`. If `True`, computes ensquared energy instead of encircled energy.
`eeRadiusInMas`	float	optional	Default: `50`. Radius in mas for the encircled/ensquared energy computation.
`progressStatus`	bool	optional	Default: `False`. If `True`, displays a progress bar.
`gpuIndex`	int	optional	Default: `0`. Target GPU device index.

Prerequisites

Your configuration file must contain a valid [HO_ASTERISM_SELECTION] section.

No [sensor_LO] section is required.

Return values

When returnMetrics=True, the function returns:

sr: Strehl ratio per HO guide-star configuration.
fw: FWHM per configuration, in milliarcseconds.
ee: encircled or ensquared energy per configuration.
simul: the asterismSimulationHo object containing inputs, indices, cached arrays, and additional internal results.

Typical access pattern:

sr_val = sr[idx][0]
fw_val = fw[idx][0]
ee_val = ee[idx][0]

If returnRes=True, the function returns HO residuals instead of image-quality metrics:

ho_res, simul = tiptop.hoAsterismSelection(..., returnRes=True)

FWHM output format

Homogeneous FWHM indexing (since v1.5.0)

Both asterismSelection and hoAsterismSelection now return fw in a homogeneous format.

For both functions, the FWHM of configuration idx and science target 0 can be accessed with:

fw_val = fw[idx][0]

Older versions used a different nesting level in some LGS cases, for example fw[idx][0][0]. This inconsistency has been removed.

Files written to `outputDir`

Results are automatically saved with the prefix simulName + '_ho_':

File	Contains	Notes
`simulName + '_ho_sr.npy'`	Strehl Ratio per configuration	unitless
`simulName + '_ho_fw.npy'`	FWHM per configuration	mas
`simulName + '_ho_ee.npy'`	Encircled energy per configuration	fraction
`simulName + '_ho_res.npy'`	HO residual wavefront error per configuration	nm RMS

⚙️ `[HO_ASTERISM_SELECTION]` section

Add a [HO_ASTERISM_SELECTION] block to your .ini file.

The currently supported mode is SingleHO, where each star in the list is evaluated independently as the sole high-order guide star.

Parameter	Required	Type	Description
`mode`	Yes	`str`	Currently only `'SingleHO'` is supported.
`Zenith`	Yes	`list of float`	Angular distance from axis for each candidate star, in arcsec.
`Azimuth`	Yes	`list of float`	Position angle for each candidate star, in degrees.
`Wavelength`	Yes	`list of float`	WFS sensing wavelength for each candidate star, in metres.
`NumberPhotons`	Yes	`list of float`	Flux per candidate star, in photons per subaperture per frame.

ERIS NGS — minimal example

[HO_ASTERISM_SELECTION]
mode = 'SingleHO'
Zenith =        [15.0, 10.0, 5.0, 0.0, 0.0, 0.0, 0.0]
Azimuth =       [0.0,  90.0, 180.0, 270.0, 0.0, 0.0, 0.0]
Wavelength =    [750e-9, 750e-9, 750e-9, 750e-9, 750e-9, 750e-9, 750e-9]
NumberPhotons = [200.0,  200.0,  200.0,  200.0,  50.0,   10.0,   5.0]

Each entry defines one candidate NGS. With mode = 'SingleHO', TipTop runs one simulation per star and returns the corresponding AO-performance metrics.

A complete worked example is available here:

➡️ TIPTOP-AST-EXAMPLE-ERIS-HO.ipynb

🧭 Which function should I use?

Situation	Use
I want to evaluate NGS asterisms for LGS-assisted AO	`asterismSelection`
I want to evaluate guide stars for NGS-only mode	`hoAsterismSelection`
My `.ini` file has `[ASTERISM_SELECTION]` and `[sensor_LO]`	`asterismSelection`
My `.ini` file has `[HO_ASTERISM_SELECTION]` and no `[sensor_LO]`	`hoAsterismSelection`
